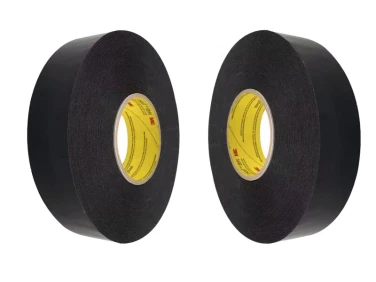

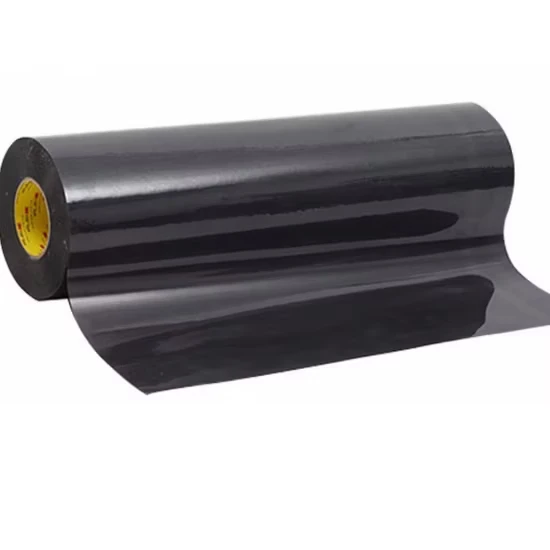

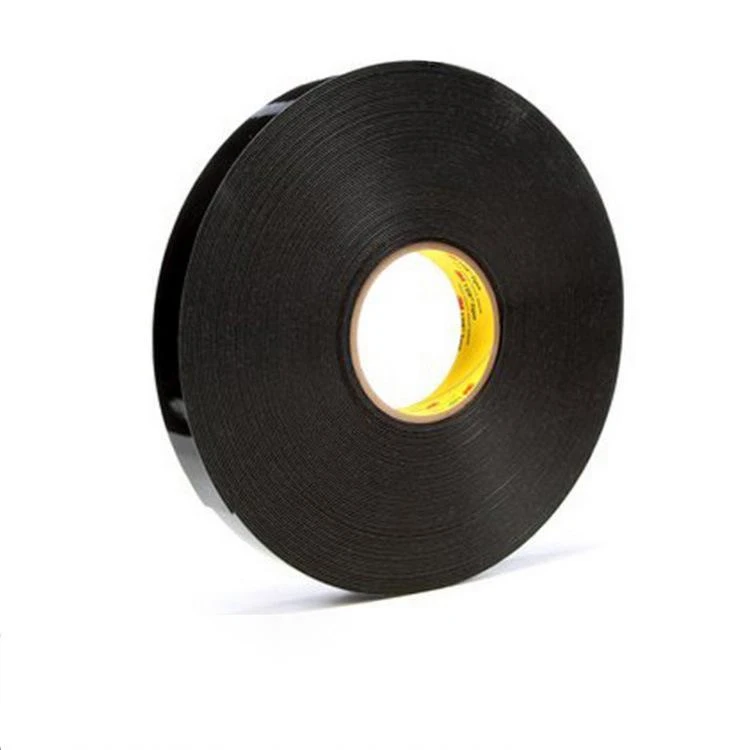

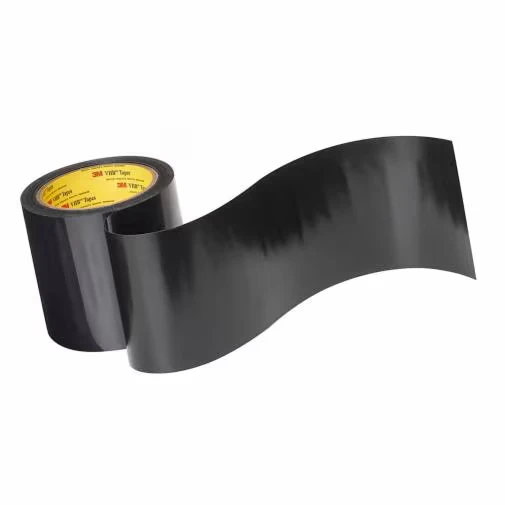

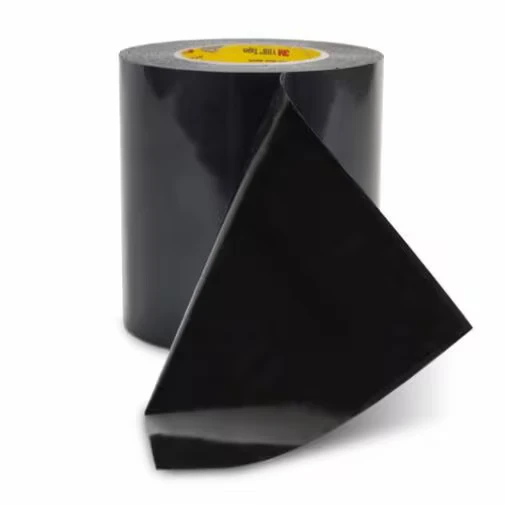

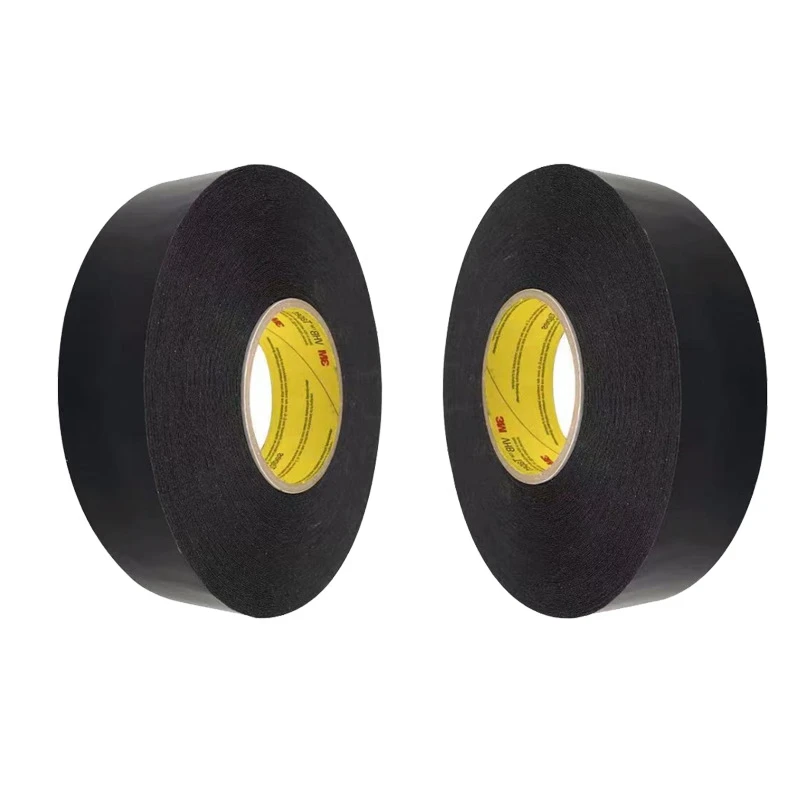

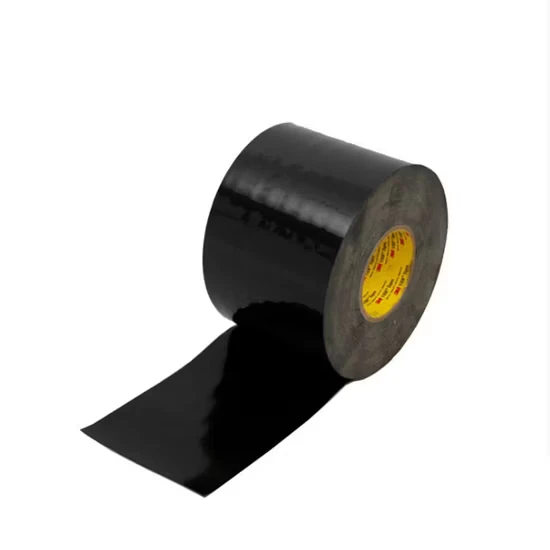

STK khoom siv tiag tiag 3M Low Surface Energy Specialty Series, featuring the definitive ultra-thin electronic grade multi-thickness portfolio: 3M VHB 86415 (0.15mm), 3M VHB 86420 (0.20mm), 3M VHB (0.20mm), 3M VHB {0. 86430 (0.30 hli).
Engineered ncaj qha los ntawm 3M los hloov pauv lub ntiaj teb cov neeg siv khoom siv hluav taws xob, khoom siv ntse, thiab kua siv lead ua kua (LCM) kev tsim khoom lag luam,3M Low Surface Zog Tshwj Xeebplatform siv cov qauv tshuaj revolutionary tsim los tshem tawm qhov xav tau ntawm cov primers saum npoo ntawm tawv - rau - cov khoom siv yas:
Ultra-Thin High-Density VHB Foam Core:Nta ib qho ultra-nyias, tag nrho cov xim dub kaw-cell acrylic matrix ($ 960 \\text{kg/m}^3$) patented los ntawm 3M. Qhov no muab lub zog sab hauv cohesive thiab kev poob siab tshwj xeeb nyob rau hauv qhov tsis txaus ntseeg txwv lub cev.
Proprietary 3M LSE Acrylic Adhesive:Coated rau ntawm ob sab nrog kev txhoj puab heev tackified acrylic formulation. Nws yog chemically engineered los kov yeej lub zog saum npoo ntawm lub zog ntawm cov khoom siv niaj hnub no, ua tiav cov molecular ntub dej tam sim ntawd - tawm thiab hla ceev ceev - txuas cov txheej txheem anchoring.
Dimensionally Stable Release Liner:Muab rau ntawm qhov huv si, noo noo- tiv thaiv polymer zaj duab xis liner tsim los txhawb siab - nrawm nrawm nrawm- txiav thiab xaiv neeg hlau- thiab- qhov chaw kab tsis muaj tearing lossis ncab.
Kev ua haujlwm nta
Kev sib koom ua ke ntawm 3M Low Surface Energy Specialty Series rau hauv koj cov kab hluav taws xob sib dhos tau lees paub txog kev tsim vaj tsev tiag tiag:
Primerless Adhesion rau Plastics nyuaj:Bonds aggressively thiab tam sim ntawd mus rau qis nto zog (LSE) substrates xws li polypropylene (PP), polyethylene (PE), ABS, polycarbonates (PC), acrylics, iav, thiab hmoov-coated hlau.
Elite Electronic Drop-Test Protection:Lub viscoelastic acrylic core nthuav dav thiab cog lus dynamically nyob rau hauv cov kev cuam tshuam ntawm cov neeg kho tshuab tam sim ntawd, nqus lub zog kom deb ntawm cov iav zoo nkauj npog kom dhau lub ntiaj teb hardware poob qis - cov qauv xeem.
Micro-Gap Hermetic Moisture Sealing:Qhov kev sib raug zoo raug kaw- cov tub ntxhais ntawm tes tsim cov dej tsis muaj zog, plua plav, thiab ib puag ncig tiv thaiv nyob rau hauv ultra- cov ntaub ntawv nqaim mus rau 0.15mm profile.
Residue-Free High-Precision Converting :Tsim los ntawm 3M kom muaj kev ruaj ntseg ruaj khov, kom tsis txhob muaj ntug - oozing, txias - ntws, los yog nplaum deformation thaum lub sij hawm txiav kev sib tw.
TDS
| Qauv (3M) | 3M 86415 | 3M 86420 | 3M 86425 | 3M 86430 |
|---|---|---|---|---|
| Khoom npe | Low Surface Zog Tshwj Xeeb | Low Surface Zog Tshwj Xeeb | Low Surface Zog Tshwj Xeeb | Low Surface Zog Tshwj Xeeb |
| Thickness (hli) | 0.15 (±10%) | 0.20 (±10%) | 0.25 (±5%) | 0.30 (±5%) |
| Adhesive Matrix | 3M™ LSE Acrylic | 3M™ LSE Acrylic | 3M™ LSE Acrylic | 3M™ LSE Acrylic |
| Backing Core | 3M™ VHB™ Acrylic Ua Npuas Ncauj | 3M™ VHB™ Acrylic Ua Npuas Ncauj | 3M™ VHB™ Acrylic Ua Npuas Ncauj | 3M™ VHB™ Acrylic Ua Npuas Ncauj |
| Xim | Dub | Dub | Dub | Dub |
| Hom kab ntawv | Hwm tso zaj duab xis | Hwm tso zaj duab xis | Hwm tso zaj duab xis | Hwm tso zaj duab xis |
| Adhesion rau hlau (N / 25mm) | Ntau tshaj los yog sib npaug rau 20 | Ntau dua lossis sib npaug 22 | Ntau dua lossis sib npaug li 25 | Ntau dua lossis sib npaug li 28 |
| Adhesion rau ABS (N / 25mm) | Ntau dua lossis sib npaug li 18 | Ntau tshaj los yog sib npaug rau 20 | Ntau dua lossis sib npaug 22 | Ntau dua lossis sib npaug li 24 |
| Luv -Lub sij hawm Temp (degree) | 120 | 120 | 120 | 120 |
| Ntev -Lub sij hawm Temp (degree) | 80 | 80 | 80 | 80 |
Daim ntawv thov
3M teeb tsa tsev neeg tshwj xeeb hauv lub zog qis no rau hauv plaub qhov ntsuas kom haum rau micro- ntsuas hluav taws xob tsim kom haum:
0.15mm (3M VHB 86415)): Lub ultra-tsawg profile xaiv rau microscopic bezel lamination, smartphone zaub qhov rais thav duab sib txuas, thiab xoom- clearance gap sealing hauv ntse wearables.
0.20mm (3M VHB 86420)): Qhov ntsuas ntsuas ntsuas qhov sib npaug rau Liquid Crystal Module (LCM) ciam teb sealing, OLED vaj huam sib luag anchoring, thiab ntse lub koob yees duab lens nplhaib positioning.
0.25mm (3M VHB 86425): Optimized rau siab -strain electronic bonding, xws li kev ruaj ntseg cov roj teeb sab hauv, hloov tau yooj yim luam ntawv Circuit Court boards (FPC), thiab shielding daim hlau mus rau yas chassis thav ntawv.

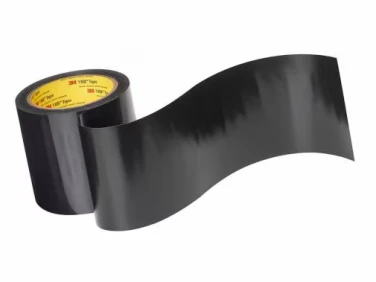

0.30mm (3M VHB 86430): Engineered nrog siab siab siab padding rau loj nkhaus iav cov ntxaij vab tshaus, ntse tsev tswj vaj huam sib luag overlays, thiab rugged hluav taws xob vaj tsev enclosures uas yuav tsum elevated shock dampening.
Hloov cov qhabnias 3M ultra-thin foam tapes down mus rau sub- millimeter scales yuav tsum muaj tseeb engineering. STK optimizes koj cov kab sib dhos ua ke los ntawm kev ua haujlwm tshwj xeeb:
Micro-Rov Ribbon Slitting: STK kev cai-slits 3M™ tswv dov nqes mus rau ultra-txoj kab nqaim meej (piv txwv li, 2mm, 3mm, 5mm) nrog zoo huv si, burr-dawb ntug profiles uas tshem tawm cov neeg hlau pub rub.
Custom PET Pull-Tabs: Txhawm rau ua kom yooj yim ntawm phau ntawv thiab ib nrab- cov khoom siv sib dhos, STK cov khoom siv tuag- txiav qhov chaw teeb tsa nrog txuas ntxiv, tsis yog- nplaum rub- tuav kom huv si tshem tawm hauv qab ib pliag.
Ntiaj teb Lead Times
Kev ntim khoom lag luam
Muab ntim rau hauv lub tshuab nqus tsev- kaw ntom nti- cov thawv thaiv, ruaj khov rau hauv hnyav- lub luag haujlwm pallets los tiv thaiv cov nplaum ntshiab ntawm cov npoo ntawm lub siab deformation lossis av noo thaum caij tsheb mus txawv tebchaws.
Standard Dispatches
Warehouse stock configurations are checked, packed, and loaded for shipping in 3-5 hnub ua hauj lwm nrog ua tiav GHS MSDS cov ntaub ntawv nplooj ntawv.
Kev cai OEM Slitting Orders
Kev cai yob dav lossis qhov ntev ntev -ntev qhov ntev yog slit, zoo- tshawb xyuas los ntawm cov calipers digital, thiab xa tuaj rau hauv 10-14 hnub ua haujlwm tom qab daim ntawv ntsuas phoo.
